| Headlight bulb replacement | |
|
+3matthew honda_silver transam86 7 posters |
Author | Message |
---|
transam86 Maxi-Scooter Rider
![Maxi-Scooter Rider Maxi-Scooter Rider](https://2img.net/i/itest/ranks/stars/stars5.gif)
![transam86](https://2img.net/u/3413/63/00/33/avatars/132-52.jpg)
Number of posts : 140 Age : 61 Location : Gray GA Points : 5860 Registration date : 2009-02-25
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Headlight bulb replacement Tue Aug 10, 2010 8:34 am | |
| Good morning to my silverwing family ITS UNCLE BLINGGY ONCE AGAIN :-) Hey check it since I sold my 07 to rafiel sadly with my bike went my shop manual because i never thought ide be on 2 wheels again . I am ready to install a set of sylvania H-7's . when I did the bulbs in my 07 I had the front body panel off and it was a piece of cake. I did see with the windscreen off theres easy access. But I still cant see the back of the headlight assembly. If my memmore suits me isint there a spring type of clip that holds the bulbs in?? Ill have to get another shop manual but for now im sure ill get enough replys to bandaid me through this headlight bulb replacement. The blingmeister |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
honda_silver Silver Wing Guru
![Silver Wing Guru Silver Wing Guru](https://2img.net/i/itest/ranks/stars/stars9.gif)
![honda_silver](https://2img.net/u/3413/63/00/33/avatars/8-33.jpg)
Number of posts : 2453 Location : Georgetown, Tx Points : 8297 Registration date : 2008-12-23
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Tue Aug 10, 2010 6:56 pm | |
| - transam86 wrote:
- when I did the bulbs in my 07 I had the front body panel off and it was a piece of cake. I did see with the windscreen off theres easy access. But I still cant see the back of the headlight assembly. If my memmore suits me isint there a spring type of clip that holds the bulbs in??
Here is a picture of the headlight bulbs and springs. http://silverwing.org/cgi-bin/image_show.pl?aid=673 http://tinyurl.com/29llla6
Last edited by honda_silver on Wed Aug 11, 2010 12:53 am; edited 1 time in total |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
matthew Touring Scooter Rider
![Touring Scooter Rider Touring Scooter Rider](https://2img.net/i/itest/ranks/stars/stars3.gif)
![matthew](https://2img.net/u/3413/63/00/33/avatars/31-75.jpg)
Number of posts : 361 Location : near Santa Fe, NM Points : 6160 Registration date : 2008-12-24
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Tue Aug 10, 2010 9:58 pm | |
| that link doesn't work, Bill. |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
crahar Super Scooter Rider
![Super Scooter Rider Super Scooter Rider](https://2img.net/i/itest/ranks/stars/stars4.gif)
![crahar](https://2img.net/u/3413/63/00/33/avatars/384-90.jpg)
Number of posts : 283 Age : 76 Location : Beaumont, Texas Points : 5782 Registration date : 2009-08-31
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Tue Aug 10, 2010 10:21 pm | |
| |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
GaryL Super Scooter Rider
![Super Scooter Rider Super Scooter Rider](https://2img.net/i/itest/ranks/stars/stars4.gif)
![GaryL](https://2img.net/u/3413/63/00/33/avatars/690-51.jpg)
Number of posts : 237 Age : 72 Location : Casa Grande, Arizona Points : 5433 Registration date : 2010-07-09
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Tue Aug 10, 2010 10:34 pm | |
| Does not work for me, either, on two different computers. It takes me to the .org home page, not the referenced post. ![Headlight bulb replacement Icon_question](https://2img.net/i/fa/i/smiles/icon_question.gif) |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
trouble1100 Touring Scooter Rider
![Touring Scooter Rider Touring Scooter Rider](https://2img.net/i/itest/ranks/stars/stars3.gif)
![trouble1100](https://2img.net/u/3413/63/00/33/avatars/595-61.jpg)
Number of posts : 341 Location : Surprise, AZ. Points : 5714 Registration date : 2010-04-30
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 7:56 am | |

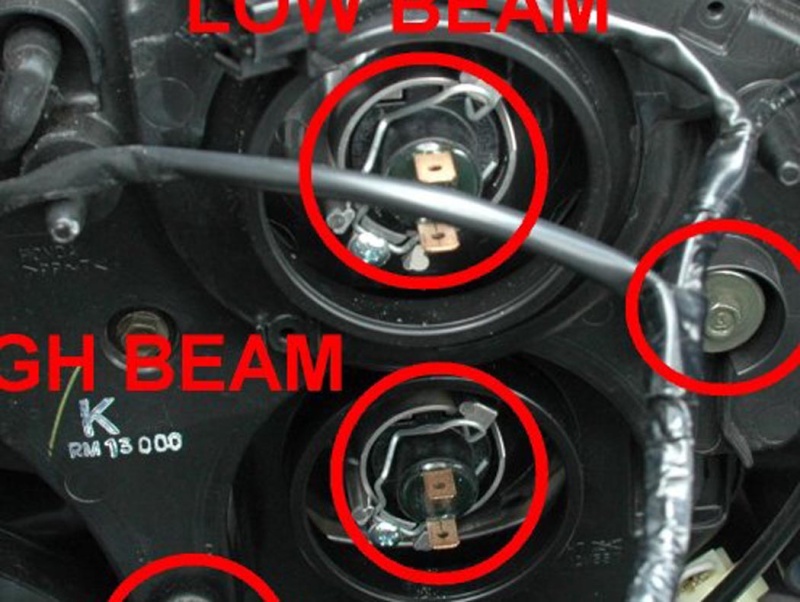

| Lets try this............ Added Close up. ![Headlight bulb replacement Headli10](https://i.servimg.com/u/f39/13/39/96/62/headli10.jpg)
Last edited by DennisB on Wed Aug 11, 2010 12:40 pm; edited 3 times in total (Reason for editing : Ajusted picture size and added picture) |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
transam86 Maxi-Scooter Rider
![Maxi-Scooter Rider Maxi-Scooter Rider](https://2img.net/i/itest/ranks/stars/stars5.gif)
![transam86](https://2img.net/u/3413/63/00/33/avatars/132-52.jpg)
Number of posts : 140 Age : 61 Location : Gray GA Points : 5860 Registration date : 2009-02-25
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 8:47 am | |
| That lihk didnt work for me either brother :-( |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
matthew Touring Scooter Rider
![Touring Scooter Rider Touring Scooter Rider](https://2img.net/i/itest/ranks/stars/stars3.gif)
![matthew](https://2img.net/u/3413/63/00/33/avatars/31-75.jpg)
Number of posts : 361 Location : near Santa Fe, NM Points : 6160 Registration date : 2008-12-24
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 9:48 am | |
| Thanks for the pic trouble1100. the service manual says to remove the windshield garnish to get to the bulbs, but i see you've removed what looks like the whole dash board. is that right? |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
trouble1100 Touring Scooter Rider
![Touring Scooter Rider Touring Scooter Rider](https://2img.net/i/itest/ranks/stars/stars3.gif)
![trouble1100](https://2img.net/u/3413/63/00/33/avatars/595-61.jpg)
Number of posts : 341 Location : Surprise, AZ. Points : 5714 Registration date : 2010-04-30
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 11:19 am | |
| I opened the link Bill posted, clicked the attachment to enlarge, grabbed the URL from the properties and did the bracket "img" thing to see is if it could be viewed by all. If not try to bypass firefox and see if it can be viewed thru another search engine.
The large view gives you the orientation of the spring clips in the so you can feel your way in to the replacement. The manual is correct, behind the windshield garnish for the low beam and up from the bottom for the high beam. |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
hot shoe Scooter Rider
![Scooter Rider Scooter Rider](https://2img.net/i/itest/ranks/stars/stars17.gif)
![hot shoe](https://2img.net/u/3413/63/00/33/avatars/707-33.jpg)
Number of posts : 30 Age : 100 Location : high desert of central Az Points : 5201 Registration date : 2010-07-16
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 4:20 pm | |
| here' s another tutorial on the subject.
http://silverwing.org/cgi-bin/topic_show.pl?tid=2072
edit: I can't seem to get the actual topic loaded, but just ckick on this link and it will be on page 3 of the silver wing information forum under media links, tutorials, etc. It shows not only a photo but text info. |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
GaryL Super Scooter Rider
![Super Scooter Rider Super Scooter Rider](https://2img.net/i/itest/ranks/stars/stars4.gif)
![GaryL](https://2img.net/u/3413/63/00/33/avatars/690-51.jpg)
Number of posts : 237 Age : 72 Location : Casa Grande, Arizona Points : 5433 Registration date : 2010-07-09
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 5:18 pm | |
| This link will only take me to the home page of the .org site, just like all of the other links to posts on the .org site. It seems that the site is rigged... ![Headlight bulb replacement Kopfschuettel](https://2img.net/i/fa/i/smiles/kopfschuettel.gif) |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
hot shoe Scooter Rider
![Scooter Rider Scooter Rider](https://2img.net/i/itest/ranks/stars/stars17.gif)
![hot shoe](https://2img.net/u/3413/63/00/33/avatars/707-33.jpg)
Number of posts : 30 Age : 100 Location : high desert of central Az Points : 5201 Registration date : 2010-07-16
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 5:48 pm | |
| - GaryL wrote:
- This link will only take me to the home page of the .org site, just like all of the other links to posts on the .org site. It seems that the site is rigged...
![Headlight bulb replacement Kopfschuettel](https://2img.net/i/fa/i/smiles/kopfschuettel.gif) Let's try this way: ![Headlight bulb replacement Swgreece](https://2img.net/h/silverwing.org/mwf/swgreece.jpg) Logged in as hot shoeSilver Wing Forum ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Forum ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Home ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Help ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Search ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Chat ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Messages ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Profile ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Options ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Logout ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Topic Silver Wing Information / Media Links, Tutorials and How-tos / Replace LoBeam Headlight bulb (locked) ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Subscribe ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) By roger Date 2008-04-06 14:17 Remove two screws at front of Garnish Remove two screws at rear of Garnish Slip some thin plastic under Garnish points. Grasp top ends and wiggle outwards and downwards Keep screws and garnish safe Through top access aperture, remove connector from rear of headlamp Remove rubber boot Push the spring forwards and downwards to release Grasping the bulbholder, bring it outside the fairing. Change the bulb in the holder, noting the shapefor alignment. DO NOT TOUCH THE GLASS ENVELOPE Replace bulb into bike, and relocate spring Fit rubber boot with drain holes facing downwards Refit connector Check that it works Refit garnish Note that screws at front are self tapping; screws at rear are M5 machine screws Attachment: GarnishFrontScrews.jpg (43.8k) Attachment: GarnishRearScrew.jpg (49.8k) Attachment: GarnishPoints.jpg (46.8k) Attachment: Access.jpg (36.9k) Attachment: 1HeadlampLayout.jpg (66.5k) Attachment: 2Close-up-rear.jpg (66.8k) Attachment: 3Remove-LampConnector.jpg (54.4k) Attachment: 4RemoveRubberBoot.jpg (89.8k) Attachment: 5spring.jpg (38.8k) Attachment: 6Spring-released.jpg (235.0k) Attachment: 7LampHolder.jpg (29.4k) 2010 Silverwing fjs600 uk, Honda box, Givi screen, Leg deflectors ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Report ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Topic Silver Wing Information / Media Links, Tutorials and How-tos / Replace LoBeam Headlight bulb (locked) ![Headlight bulb replacement Epx](https://2img.net/h/silverwing.org/mwf/epx.png) Subscribe Forum About the Forum - New Users Read Me - FAQ - Translate in to German/Spanish/French/Italian Chat Forum - Silver Wing Chat - General Chat Silver Wing Information - Media Links, Tutorials and How-tos - Service/Maintenance - Silver Wing Part Numbers - Faults and Fixes - Parts and Accessories (Links only please) - Accidents & Insurance - Legal Issues Silver Wing Owners - Owners Gallery - Owner Experiences and Reviews Silver Wing meets - New meetings - Previous Meetings Classifieds - Silver Wings For Sale - Silver Wing Items For Sale - Silver Wing Items Wanted Campaigns - Motorcycle Safety Forum Notices and Support - Forum Notices and Problems Powered by mwForum 2.22.1 © 1999-2010 Markus Wichitill |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
matthew Touring Scooter Rider
![Touring Scooter Rider Touring Scooter Rider](https://2img.net/i/itest/ranks/stars/stars3.gif)
![matthew](https://2img.net/u/3413/63/00/33/avatars/31-75.jpg)
Number of posts : 361 Location : near Santa Fe, NM Points : 6160 Registration date : 2008-12-24
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 7:42 pm | |
| ok mr. hotshoe. that's just great. thanks for all the trouble. now..............
what about the high beam bulb!!?
(just kidding! I'm sure there's a tutorial somewhere, and as i understand it you reach up from under the bike into the bulb compartment, and wish yourself good luck). |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
hot shoe Scooter Rider
![Scooter Rider Scooter Rider](https://2img.net/i/itest/ranks/stars/stars17.gif)
![hot shoe](https://2img.net/u/3413/63/00/33/avatars/707-33.jpg)
Number of posts : 30 Age : 100 Location : high desert of central Az Points : 5201 Registration date : 2010-07-16
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 7:49 pm | |
| - matthew wrote:
- ok mr. hotshoe. that's just great. thanks for all the trouble.
now..............
what about the high beam bulb!!?
(just kidding! I'm sure there's a tutorial somewhere, and as i understand it you reach up from under the bike into the bulb compartment, and wish yourself good luck). Yeh that one is a piece of cake. just reach up under the right hand plastic behind the wheel and you can feel the bulb holder. I don't recall whether you can actually SEE IT but just pretend it's your girl friend in the dark! ![Headlight bulb replacement Lol](https://2img.net/i/fa/i/smiles/lol.gif) |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
transam86 Maxi-Scooter Rider
![Maxi-Scooter Rider Maxi-Scooter Rider](https://2img.net/i/itest/ranks/stars/stars5.gif)
![transam86](https://2img.net/u/3413/63/00/33/avatars/132-52.jpg)
Number of posts : 140 Age : 61 Location : Gray GA Points : 5860 Registration date : 2009-02-25
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 10:02 pm | |
| Well since i started this thread please allow me to say thankyou. The only thing I can see is that one photo. All them other links it says access denied. So basically I gotta remove the windshield im gathering? As I said last time I had the entire front body cover off because I had to replace it. So looks like just remove the front garnish and the screen and thats it?? As far as access to the bulbs themselfs. Then the removal of the boot then the spring clips?? |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
hot shoe Scooter Rider
![Scooter Rider Scooter Rider](https://2img.net/i/itest/ranks/stars/stars17.gif)
![hot shoe](https://2img.net/u/3413/63/00/33/avatars/707-33.jpg)
Number of posts : 30 Age : 100 Location : high desert of central Az Points : 5201 Registration date : 2010-07-16
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 10:08 pm | |
| Yup, that's about it Eddie. It't been awhile but I dont recall removing the screen to get to the low beam.However if you have fairly large hands it can be a tight squeeze getting in there & then moving the hand around. When I first started to look for this link on the other forum I could open all the photo links but I guess John locked the thread later & I couldn't open them anymore.
Last edited by hot shoe on Wed Aug 11, 2010 10:15 pm; edited 1 time in total |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
transam86 Maxi-Scooter Rider
![Maxi-Scooter Rider Maxi-Scooter Rider](https://2img.net/i/itest/ranks/stars/stars5.gif)
![transam86](https://2img.net/u/3413/63/00/33/avatars/132-52.jpg)
Number of posts : 140 Age : 61 Location : Gray GA Points : 5860 Registration date : 2009-02-25
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 10:11 pm | |
| YO BROTHER CAL HOLLY SH++ OH MY GOD ITS BEEN SO DAMN LONG. Damn good to hear from you. Well I do have big hands so im just gonna do it right, Besides I bought the wallyworld lights so ill remove the shield and do the bulbs and also have access to an inner place to make running my driving light wireing alot easyer. Thankyou brother. and great to hear from you brother Cal Eddie B |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
hot shoe Scooter Rider
![Scooter Rider Scooter Rider](https://2img.net/i/itest/ranks/stars/stars17.gif)
![hot shoe](https://2img.net/u/3413/63/00/33/avatars/707-33.jpg)
Number of posts : 30 Age : 100 Location : high desert of central Az Points : 5201 Registration date : 2010-07-16
![Headlight bulb replacement Empty](https://2img.net/i/empty.gif) | Subject: Re: Headlight bulb replacement Wed Aug 11, 2010 10:21 pm | |
| I can't remember if the shield being off will make a difference or not. BTW I added a little to the other post about the photo links in case you didn't see the edited part. |
|
![Go down](https://2img.net/s/t/12/97/68/i_down_arrow.png) | |
| Headlight bulb replacement | |
|
